SG600FC/YZ35-13L Large Flow Peristaltic Pump 12L/min High Volume Filling Pump Sauce Filling Dispense Pump
stars, based on ( 0 ) review
Chonry® Peristaltic Pump
SG600FC High Flow Rate Dispensing Peristaltic Pump 12L/min Tube 73# 82#
Large Flow Filling & Dispensing Peristaltic Pump SG600FC. Simple operating dispensing pump. SG600FC high-volume dispensing peristaltic pump support set the Filling volume/Filling time/ Pause time/ Copy number on the touch screen directly. No need to count the tube flow and time. Like the auto smart camera replaced the traditional camera. Which can improve your work efficiency.
This pump with compact structure and Desktop design that is suitable for manual semi-auto & small batch filling.
Typical Case:
Essential oil filling/ glue filling/ Medium filling/ Vessels filling/ E-liquid filling/ fruit vegetable sauce bottle filling/ chemical liquid filling/ food bottle filling etc.
Application Case

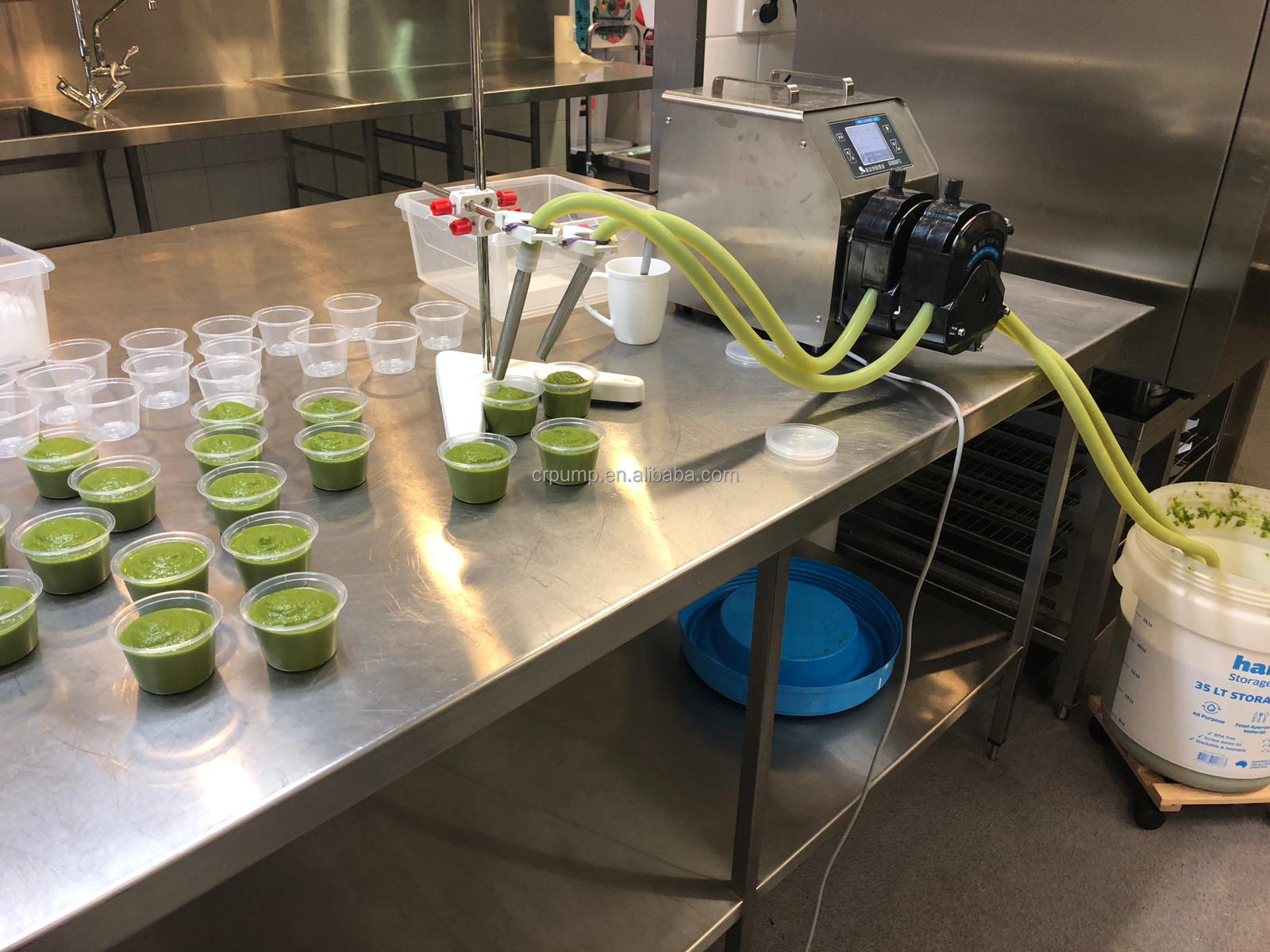

Fruit and Vegetable Paste Filling from Australian customers
Fermentation Tank And Reactor System

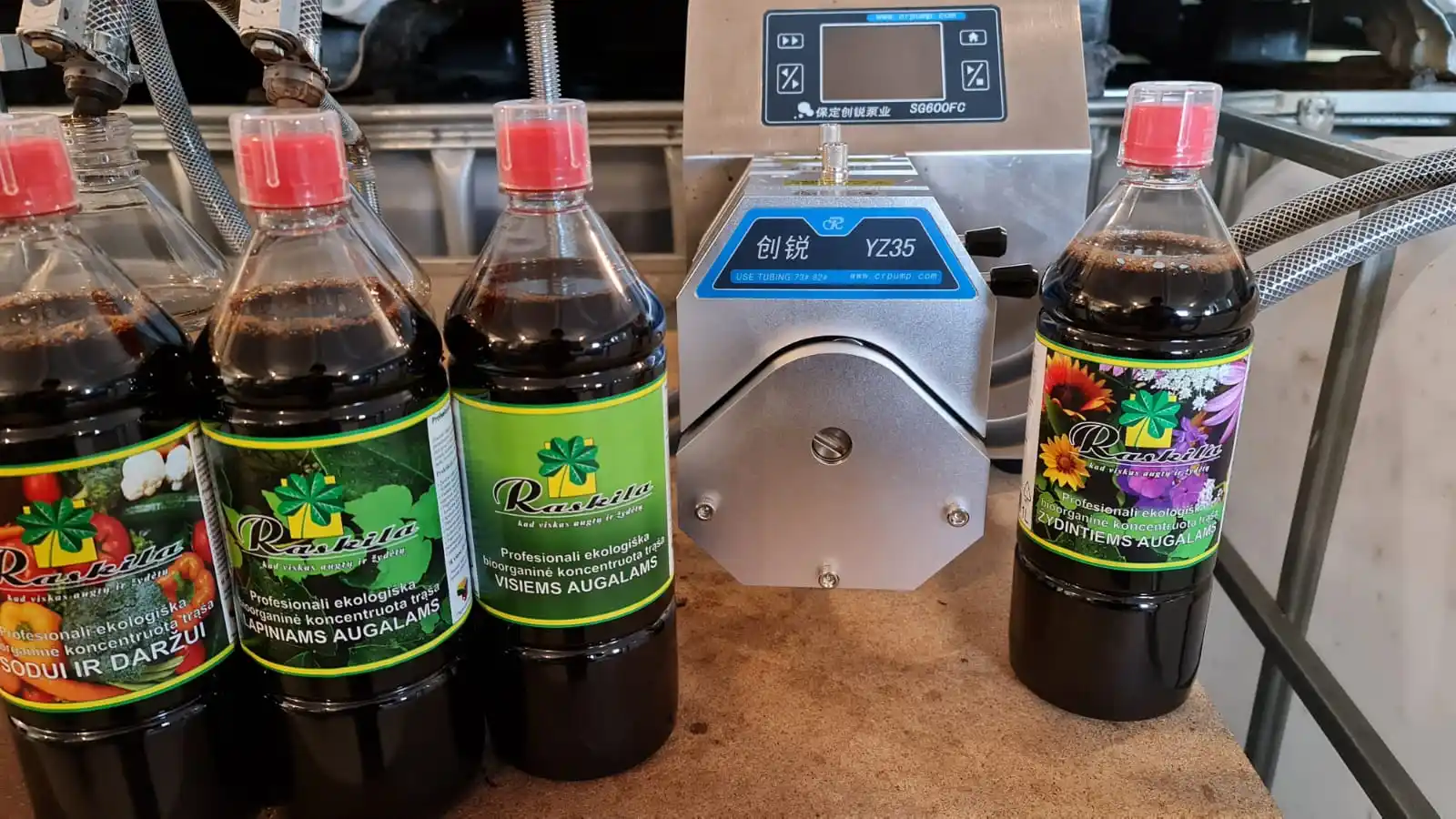

Soil Conditioner Filling From Lithuania Customers
200ml Filling Test
Parameter
| Model | SG600FC/YZ35-13L Large Flow Peristaltic Pump 12L/min |
| Max Speed | 600rpm(reversible) |
| Speed Resolution | 0.1rpm |
| Max Flow | 12000mL/min |
| Disaplay method | Color LCD display (Chinese and English optional) |
| Speed mode | Touch screen adjustment |
| Power Supply | AC220V+10%(standard) or AC110V+10% (optional) |
| Power | <400W |
| Suction Speed | 10-300rpm |
| External control method | Start control/direction control/speed control (0-5V0-10V,4-20mA optional) RS485 serialcommunication |
Features:
1. SG600FC high volume filling peristaltic pump has liquid constant run function and liquid bottle filling dispensing function.It support repeated timing and volume filling.
2. 3.5 inch color LCD, chinese and Englihs display. Touchscreen control.
3.Liquid suction function prevent liquid dripping.
4. 8 sets Data can be stored fo users.

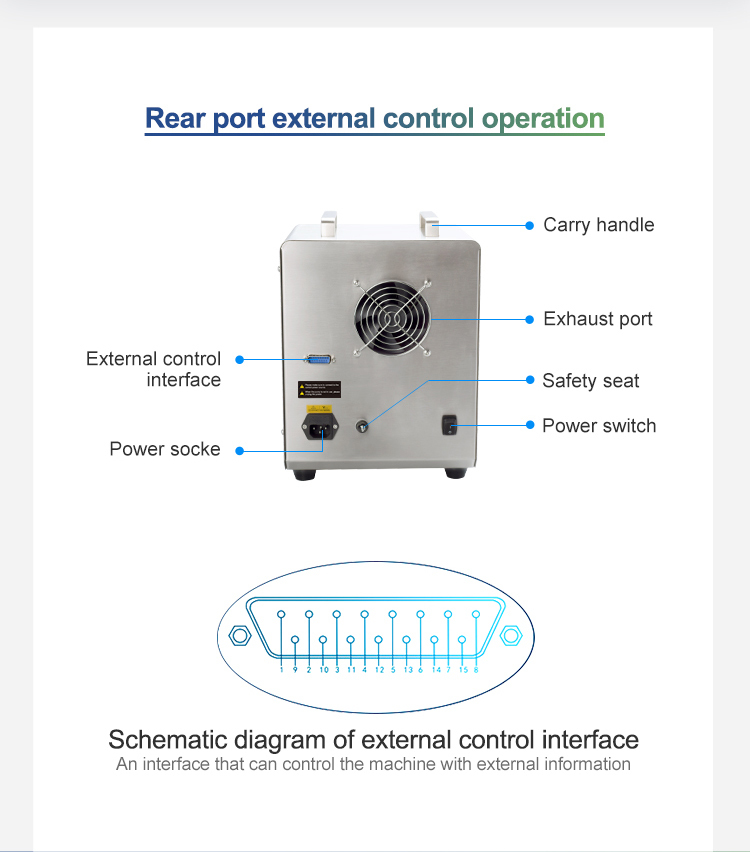

5. Support external control. Support RS485/MODBUS communication protocol, analog
control, foot switch control.
Pump Head flow Parameter
| Model | Pump Head | Tube | ID(mm) | Wall thickness(mm) | Max Flow(ml/min) |
| SG600FC | YZ35-13L | 73# | 9.6 | 3.3 | 7400 |
| SG600FC | YZ35-13L | 82# | 12.7 | 3.3 | 12000 |
- Drive Model:
- SG600FC high volume peristaltic pump liquid dispensing
- Pump head:
- YZ35-13L
- Speed range:
- 0.1-600rpm
- Speed resolution:
- 0.1rpm
- Flow rate:
- Max 12000ml/min/channel
- Drive size:
- 340X238X325.5(mm)
