Chonry® Peristaltic Pump
OEM208-KZ25 Mini Peristaltic Pump 12V 24V OEM Peristaltic Pump Beer Brewing 6L/min

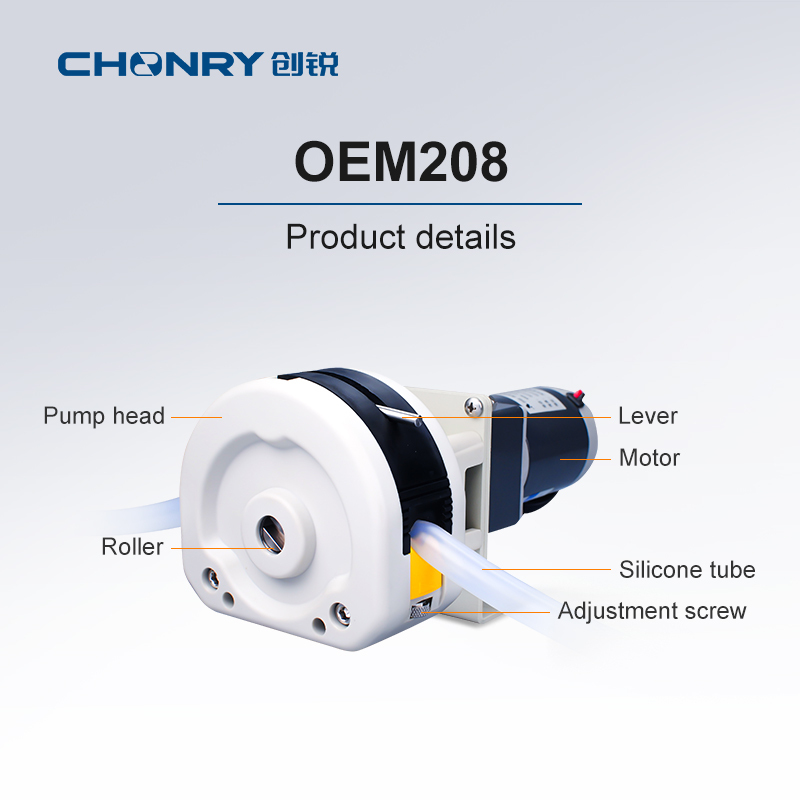

The OEM208 mini peristaltic pump adopts a KZ25 pump head. It has a large flow of 6L/min and a speed of 600rpm. OEM208 peristaltic pumps are used for Yeast handling in beer brewing, tomato sauce bottle filling,coffee machine and liquid filling machine support.
OEM208/KZ25 mini peristaltic pump adopts 12v or 24v DC motor. Compact structure design, simple installation design, and good working performance, widely used in various liquid processing equipment.It is one of the top selling OEM pumps. You will often find these peristaltic tubing pumps in vending machines, soft serve ice cream machines, milk vending machines, printers and other ink machines.The max flow up to 6000 ml/min
1.OEM208/KZ25 mini peristaltic pump ,flow rate range is 0-6000ml/min,Volts:DC12V or DC24V ,Rotor:3 rotors,speed range: 0.1-600rpm.
2.This peristaltic pump is powerful,suitable for viscous, non-viscous liquid transfer,flow direction can be controlled by the positive and negative connection.The corrosion resistance OEM208/KZ25 peristaltic pump has superb features built-in and flexible design to meet specific customer needs.
3.Peristaltic Pump 12v or 24v Small, low noise, no pollution, reversible flow is possible.Simple construction, easy to install and maintain.Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump a longer life.
4.Pump tube No pollution.The gearbox drives the pump tube to work, and the pump tube is not easy to slip.The liquid only touches the pump tube, not the pump body.
5. Quick pump head pressure tube method
6.Separable upper-pressure block design
7. Good rigidity and high-temperature resistance
Pump head & Flow rate
OEM208/KZ25 Mini Peristaltic Pump For Beer Brewing
Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program.
Tube specifications for the pump head KZ25
Noted : The standard tube which will come with the pump is model 36#, If you need other tube model , pls contact our sales in advance.
| Tubing size (ID x Wall thickness) | Min. flow rate (0.1 rpm) | Max. flow rate (600 rpm) |
| 4.8*2.4mm（15#） | 0.3 mL/min | 1800mL/min |
| 6.4*2.4 mm（24#） | 0.5 mL/min | 3000mL/min |
| 7.9*2.4 mm （35#） | 0.4 mL/min | 4200mL/min |
| 9.6*2.4mm （36#） | 1 mL/min | 6000mL/min |
Kind tips:
All the data in the Above chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
Contact us, we will help you with better selection.
- Motor type:
- DC Motor
- Speed range:
- 0.1-600 rpm
- Flow range:
- 0-6000ml/min
- Direction :
- reversible
- Power Supply:
- 12V or 24V
- Pump tube material:
- silicone tube
- Suitable Tubing:
- 15# 24# 35# 36# （The default 36# pump tube, if you need other types of pump tubes, please consult customer service.）
- Package size:
- 29*19*19cm.
- Net weight:
- 3.5 kg (7.71 lbs)
- NOTE:
- D'not place this product in hazardous work areas, flammable and explosive environments, including but not limited to routine transmission of flammable liquids.
