Chonry® Peristaltic Pump
OEM200/YZ35-13L Small Peristaltic Pump DC 12V 24V Large Flow Water Treatment

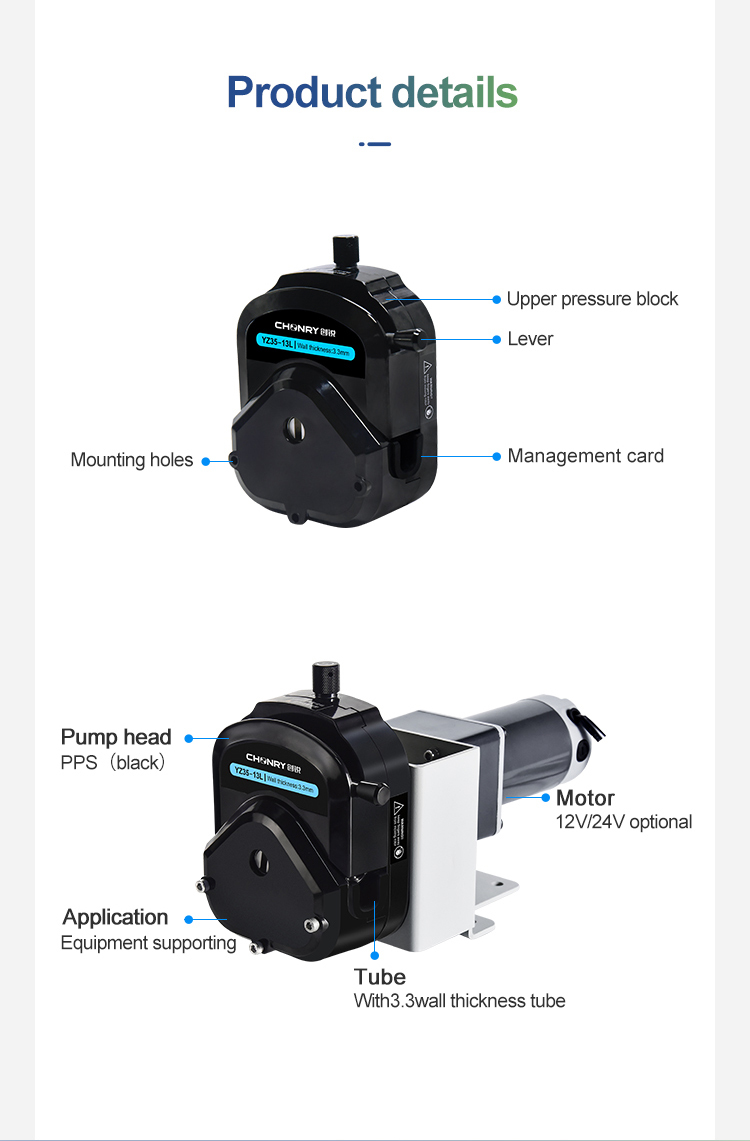

The OEM200 small dosing peristaltic pump adopts YZ35-13L large flow pump head and 12v 24v DC motor. The max flow is up to 12L/min. The OEM200 large flow peristaltic pump have superb features built-in and flexible design to meet specific customer needs. Flexible rotor assembly, pressure can be adjusted, which gives this OEM peristaltic pump powerful functions.
The peristaltic pump is suitable for wall thickness 3.3mm Silicon tube. There are s rollers inside. The roller has high strength, better wear resistance, strong chemical corrosion resistance.
Advantages:
-Regulating knob
Pressure tube clearance can be fine-tuned by turning the knob.
- Solid and durable
The shell is made of PPS and the rollers are made of Stainless steel, sturdy and durable.
- Support for customized
Pump heads can be connected for multi-channel in series and OEM customized available to meet different needs
- Tube protection
The inlet and outlet are equipped with pump tube soft sleeve effectively extend the life of pump tube.
OEM200 Small Peristaltic Pump Parameter
Model | OEM200/YZ35-13L Small Peristaltic Pump DC 12V 24V Large Volume Liquid Transfer Pump | |
Pump Head | YZ35-13L | |
Channels | 1 | |
Rollers | 3 | |
Roller Material | Stainless Steel | |
Shell Material | PPS (Black) | |
Tube Specifications | 73#, 82# | |
Max Flow(ml/min) | 12L/min | |
Max Speed(rpm) | 600 | |
Motor | 90 medium and large DC Motor | |
Motor Power | 120W | |
Motor Voltage | DC 12V | DC 24V |
Motor Current | 14.5A | 7.2A |
Applications:
- Mechanical grinding and polishing solution
- Chemical Liquid Convey
- Water treatment
- High volume chemical liquid transfer.
Pump head/ Tube Flow Parameter Table
Model | Tube | ID(mm) | Wall thickness(mm) | Max Speed (rpm) | Max Flow(ml/min) |
YZ35-13L | 73# | 9.6 | 3.3 | 600 | 7400 |
82# | 12.7 | 3.3 | 600 | 12000 |
- Brand Name:
- CR
- Certification:
- CE
- Structure:
- OEM Peristaltic pump (pump head + DC Motor)
- Power:
- Electric
- Origin:
- China
- Pressure:
- Low Pressure
- Standard or Nonstandard:
- Standard
- Application:
- Metering
- Usage:
- High volume Liquid Transfer
- Model Number:
- OEM200/YZ35-13L
