BT100FC-YZ1515X Peristaltic Pump Dispenser 380ml/min Microliquid Filling Pump Bottle Filling Dosing Pump
Peristaltic pump BT100FC/YZ1515x
1. BT100FC dispensing peristaltic pump adopts YZ1515x pump head with the flow rate is 380ml/min.Lab scale filling & dispensing peristaltic pump.
2. BT100FC peristaltic pump solves the micro liquid dipensing and filling that can be set the filling volume/filling time/ pause time/ copy number on the touch screen directly. No need to count the tube flow and time.
3. Compact structure and desktop design that is suitable for manual semi-auto & small batch filling.
Application:
Essential oil filling/glue filling/nail polish filling/medium filling/lab scale vials/vessels filling/e-liquid filling etc.
| Drive model | BT100FC-YZ1515X Peristaltic Pump Dispenser 380ml/min Microliquid Filling Pump Bottle Filling Dosing Pump |
| Max Speed | 100rpm(reversible) |
| Speed resolution | 0.1rpm |
| Max flow | 380mL/min |
| Display method | Color LCD display (Chinese and English optional) |
| Speed mode | Touch screen adjustment |
| Back suction angle | 10°-720° (0° means no back suction) |
| Back suction Speed | 10-100rpm |
| Power | ＜22W |
| Drive size | 215*136.4*236.7mm |
| Drive weight | 4.64kg |
| Power supply | AC220V±10% (standard) or AC110V±10% (optional) |
| External control method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional) RS485 serial communication |
Features:

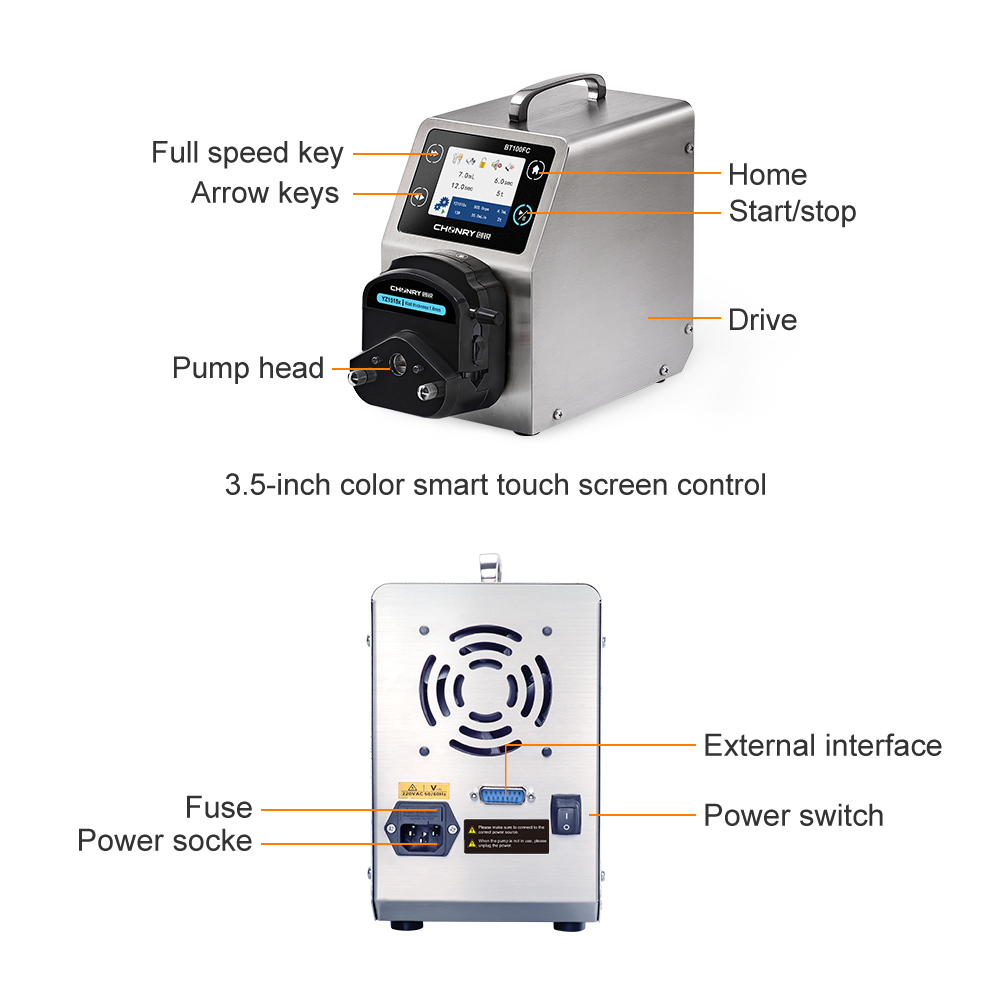

- LCD screen:3.5 inches LCD screen display ,touch button operation,real-time display of operating parameters, simple and convenient peristaltic pump.
- Modes: liquid constant transfer mode and liquid dispense mode. (Repeated timing and quantitative filling can be performed.)
- Customer data saving function: can save 8 sets of data for customers.
- External Control mode:This intelligent peristaltic pump machine can be used when it is connected to the power supply, and it is also equipped with a foot switch that can be used to control the start and stop.
- RS485 communication interface and MODBUS communication protocol are available.External controller supports high and low electrical level to operate the start or stop.(If you need an external control line, please contact us for remarks.)
Pump head & Flow rate
BT100FC/YZ1515x
Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program.
Tube specifications for the pump head YZ1515x(black is defaulted)

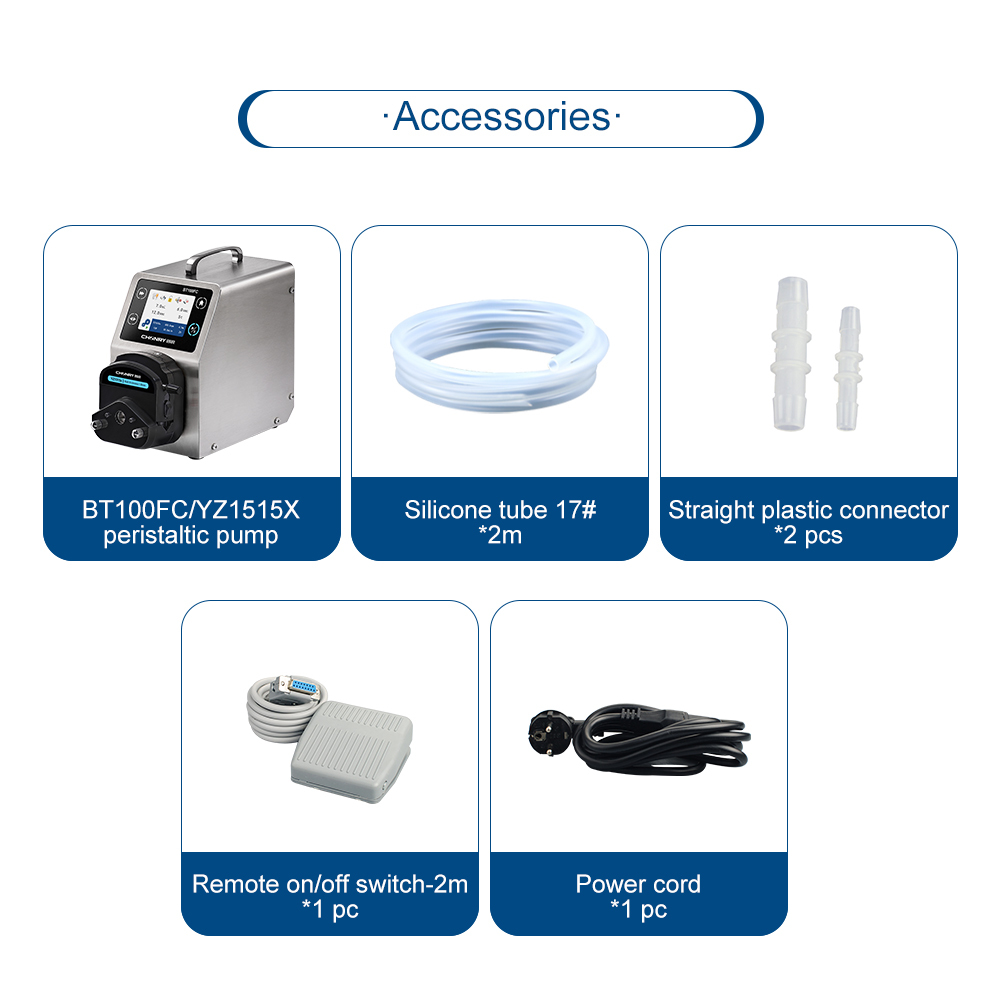

Noted : The standard tube which will come with the pump is model 17#, If you need other tube model , pls contact our sales in advance.
| Tubing size (ID x Wall thickness) | Min. flow rate (0.1 rpm) | Max. flow rate (100 rpm) |
| 0.8 mm x 1.6 mm (13#) | 0.007 mL/min | 7 mL/min |
| 1.6 mm x 1.6 mm (14#) | 0.027 mL/min | 27 mL/min |
| 2.4 mm x 1.6 mm (19#) | 0.051 mL/min | 51 mL/min |
| 3.1 mm x 1.6 mm (16#) | 0.082 mL/min | 82 mL/min |
| 4.8 mm x 1.6 mm (25#) | 0.17 mL/min | 170 mL/min |
| 6.4 mm x 1.6 mm (17#) | 0.29 mL/min | 290 mL/min |
| 7.9 mm x 1.6 mm (18#) | 0.38 mL/min | 380 mL/min |
Kind tips:
All the data in the Above chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
Contact us, we will help you with better selection.
- Motor type:
- Stepping motor
- Speed range:
- 0.1-100 rpm
- Flow range:
- 0.007-380ml/min
- Maximum power:
- 22W
- Direction:
- reversible (There are two transmission distribution modes to choose from. Repeated timing and quantitative filling can be performed. )
- Control mode:
- 3.5-inch color LCD screen, touch operation, real-time display of operating parameters.
- Communication interface:
- RS485, MODBUS protocol is ready.Support for external signal and communication control（If you need an external control line, please contact us for remarks.）
- Applicable power supply:
- AC 110-220V
- Pump tube material :
- silicone tube
- Suitable Tubing:
- 17# 13# 14# 19# 16# 25# 18#（The default 17# pump tube, if you need other types of pump tubes, please consult customer service.）
- NOTE:
- D'not place this product in hazardous work areas, flammable and explosive environments, including but not limited to routine transmission of flammable liquids.
